LONG REDIOUS BEND

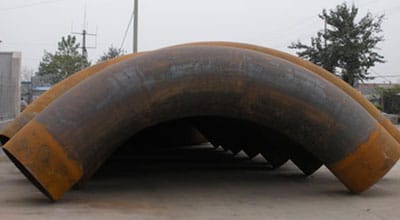

Industrial Long Radius Bend

We are engaged in offering high quality Long Radius Bend that is manufactured by using superior quality raw materials.
These are available in type Seamless / Welded / Fabricated and come in various forms like that of Long Radius Bend,
Piggable Bend, Hot Bend, 3D, 5D, U, J, Customized, Mitered Bend

Technical Information

Size :	1/2"NB TO 18"NB ANSI B16.9
Thickness	Sch 5,10,20,30,40,60,80,100,120,140,160,180,STD,XS,XXS
Stainless Steel Bend	Stainless Steel U Bend – SS U Bend ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Duplex Steel Bend	ASTM A -B15 UNS,S31803,S32760,S31500
Alloy Steel Bend	ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91
Carbon Steel:	ASTM, A234, WPB / A420, WPL3 / A420, WPL6 / MSS-SP-75, WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70
LTCS Bend	ASTM A-420 WPL6
Cu Ni Bend	C70400,C70600(9:10) C71000,C71500(70: 30) C71640
Nickle Bend	UNS N02200,N0 2201
Monel Bend	UNS N04400, N05500
Inconel Bend	UNS N06600, N06601,UNS N06625, N06617,UNS N07718, N08800,UNS N08810, N08825
Hastealloy Bend	UNS N06022, N10276,N10665,N06455,
Alloy 20 Bend	Alloy 20
Other Service	Hot Deep Galvanizing Sand Blasting Etc.
Test Certificate	Manufacturing Test Certificate Asper the EN 10204,3.1B With NACE MR 01 75
Tolerance	Minnimum Wall Thinning Rate and quality,no wrinkles, with required tangent length
